Brief
Introduction of stir fixation
green tea

Stir fixation Green Tea is named
by its drying way. It can be
divided into 3 types:
1.
Long Stir fixation Green Tea
2.
Ball Stir fixation Green Tea
3.
Flattened Stir fixation Green
Tea
Long Stir fixation Green Tea has
another name Mei Tea due to its
eyebrow shape.
Ball Stir fixation Green Tea can
also be called gun powder tea.
Flattened Stir fixation Green
Tea can be called flattened tea.
Generally speaking, it includes
fixing, rolling and drying in
stir fixation green tea making.
Stir fixation green tea Processing
Procedure

Generally Speaking, stir
fixation green tea processing needs the
following steps:
Fixing!Rolling!Unblocking and
grading!first drying!Roasting in
roller!Screening-Final drying.
Machinery Show

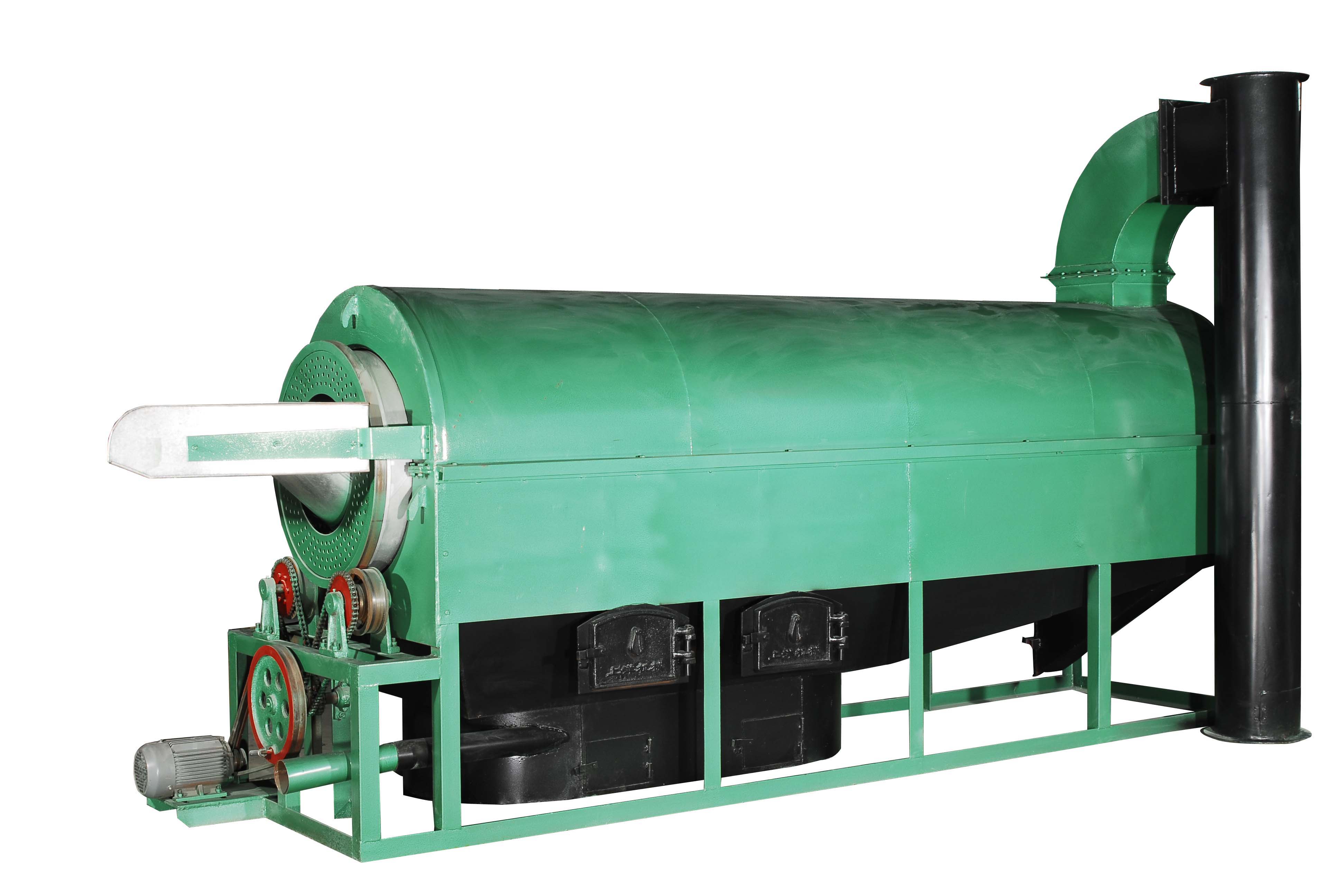

Fixing Machine

Model: CTN6CST-60(Tumbling Box)
Technical Data:
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Motor
(kw) |
CTN6CST-40 |
2205〜700〜1400 |
85\3 |
0.59 |
CTN6CST-50 |
3000〜790〜1500 |
85 |
0.75 |
CTN6CST-60 |
4180〜980〜2190 |
150!180 |
1.3 |
CTN6CST-70 |
5070〜1100〜2620 |
200!250 |
3.15 |
CTN6CST-80 |
4600〜1100〜3500 |
250-300 |
3.5 |
|
|
|

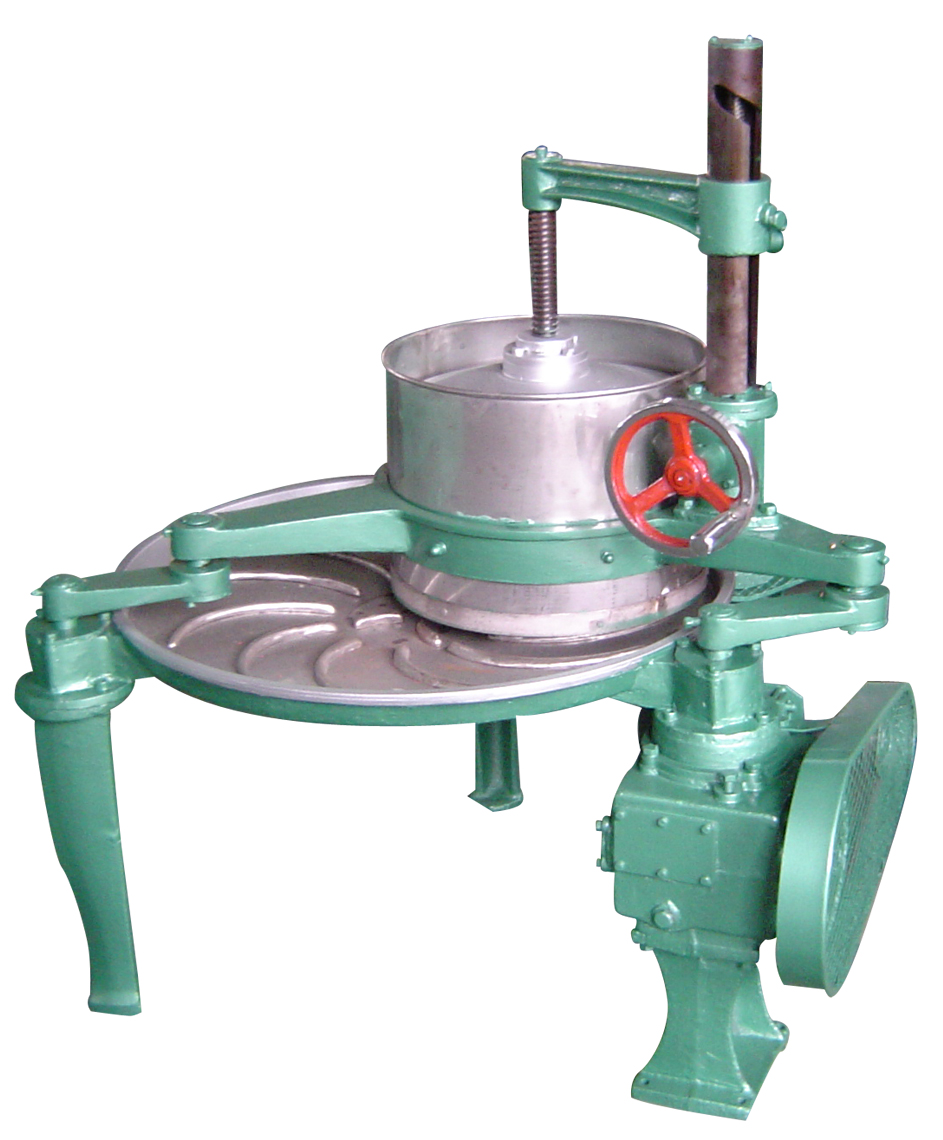

Rolling Machine

Model: 6TCR-35
Technical Data:
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Motor
(kw) |
6TCR-25 |
670〜570〜600 |
20-30 |
0.37 |
6TCR-30 |
1065〜860〜706 |
30-35 |
0.55 |
6TCR-35 |
1100〜1000〜1020 |
35-40 |
0.55 |
6TCR-40 |
1200〜1100〜1200 |
80-100 |
1.1 |
6TCR-55 |
1580〜1380〜1600 |
80-150 |
2.2 |
6TCR-65 |
1950〜1700〜1850 |
100-180kg/h |
4.0kw |
Drying Machine

Model: 6TCHB-3.0
Technical Data
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Motor
(kw) |
6TCHB-3.0 |
3100〜840〜1400 |
10-20 |
1.6 |
6TCHB-6.0 |
4853〜1524〜1650 |
−25 |
0.75 |
6TCHB-10 |
5760〜1530〜1650 |
40-60 |
0.75 |
6TCHB-16 |
6380〜1530〜2000 |
−30 |
1.1 |
6TCHB-20 |
6710〜1780〜2100 |
−35 |
1.1 |
6TCH-30 |
6400〜2120〜2400 |
160-180 |
10.1 |
CTN6CHB-3.0 |
3100X840X1400 |
−12 |
0.8kw |

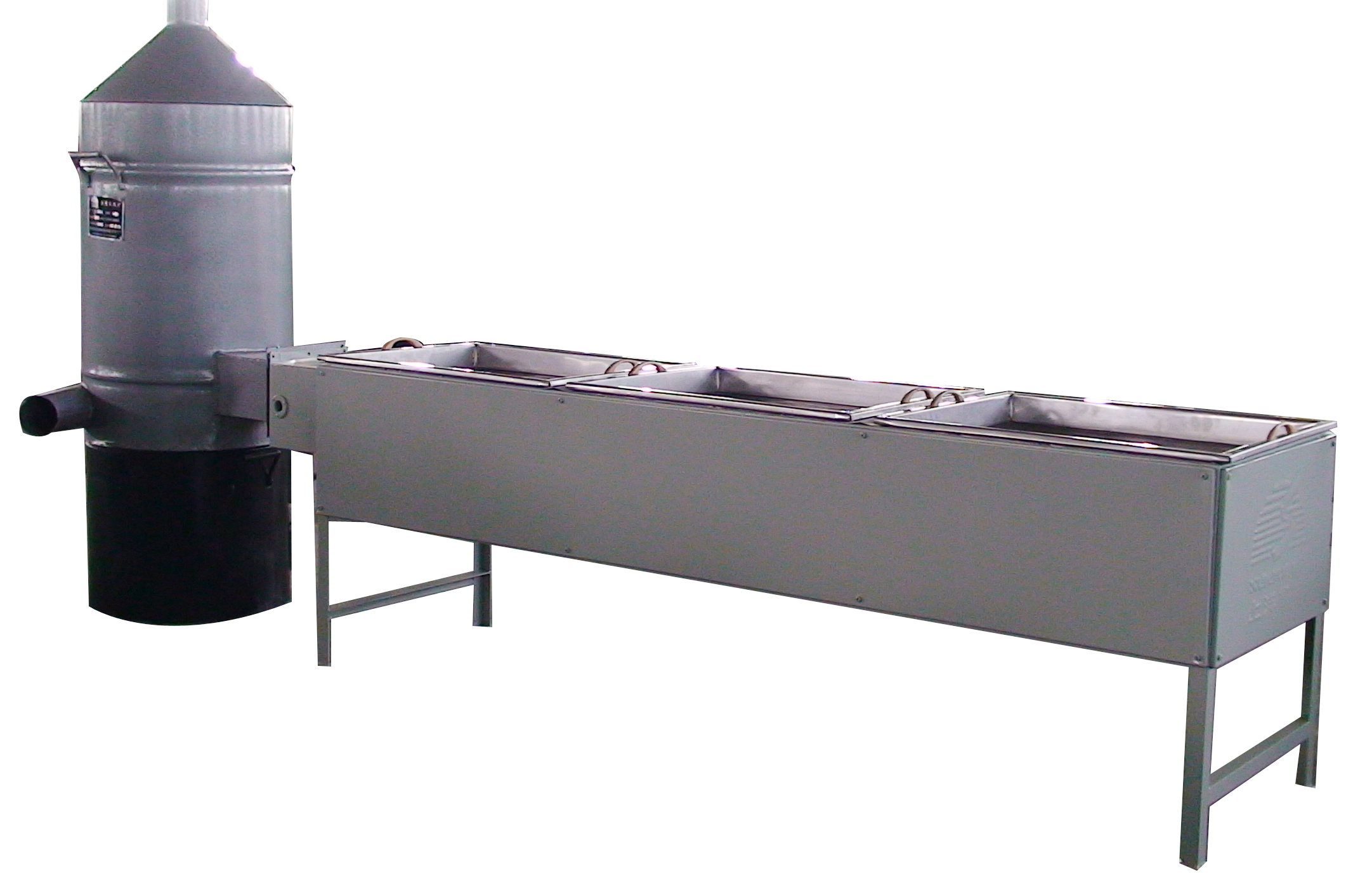

Roasting Machine

CTN6CHP-60
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Plate
(pc) |
CTN6CH-941 |
2650〜480〜876 |
12-15 |
5 |
CTN6CH-941II |
1970〜480〜876 |
8-10 |
3 |
CTN6CH-60 |
1990〜600〜600 |
10-12 |
3 |
Stir Fixation Machine

Model:
6TCCP-110
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
6TCSP-60 |
1800 x 1100 x1650 |
−15 |
0.55kw |
6TCCP-90 |
2150 x 1500 x 2200
3200 x 1200 x 600 |
−30 |
1.1 |
6TCCP-110 |
2220 x 1600 x 2400
3200 x 1200 x 600 |
−45 |
1.1 |
