Generally speaking, it includes
fixing, rolling and drying in
stir fixation green tea making.

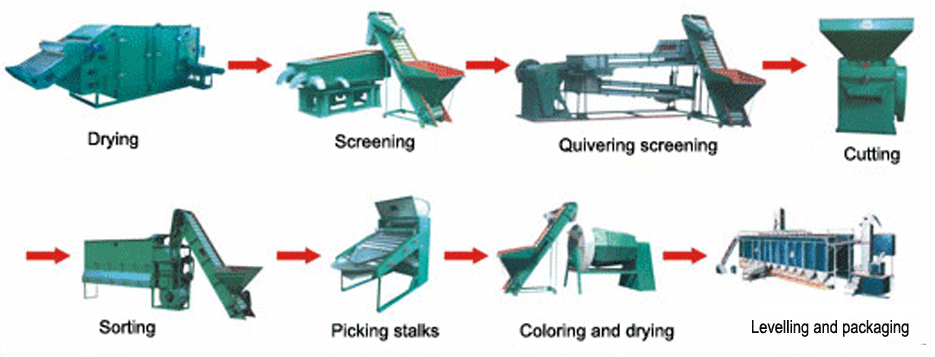

Famous Tea Processing
Procedure
Generally Speaking, stir
fixation green tea processing needs the
following steps:
Drying--Screening--Quivering &
Screening--Cutting！Sorting--Sorting-Stalk
picking--Coloring and drying--Levelling
& packaging.
Machinery Show
Drying Machine
Model: 6TCHB-3.0
Technical Data:
|
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Motor
(kw) |
|
6TCHB-3.0 |
3100〜840〜1400 |
10-20 |
1.6 |
|
6TCHB-6.0 |
4853〜1524〜1650 |
−25 |
0.75 |
|
6TCHB-10 |
5760〜1530〜1650 |
40-60 |
0.75 |
|
6TCHB-16 |
6380〜1530〜2000 |
−30 |
1.1 |
|
6TCHB-20 |
6710〜1780〜2100 |
−35 |
1.1 |
|
6TCH-30 |
6400〜2120〜2400 |
160-180 |
10.1 |
|
CTN6CHB-3.0 |
3100X840X1400 |
−12 |
0.8kw |
|
|
|

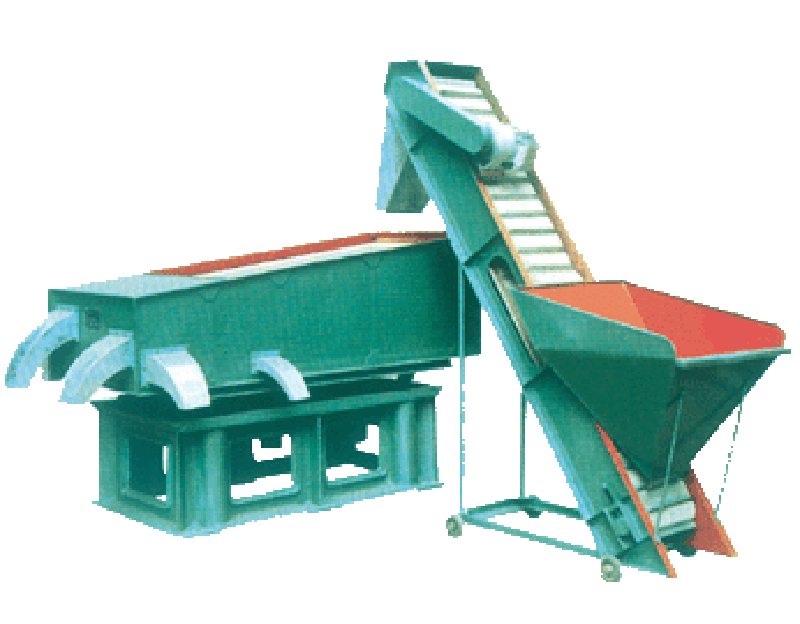

Screening Machine
Model: CTN6CSY-766
Technical Data:
|
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Motor
(power) |
|
CTN6CSY-766 |
2440〜3420〜2510 |
1000-1300 |
1.12kw |
|
CTN6CSY-40 |
1260〜1090〜930 |
800-1000 |
0.75kw |

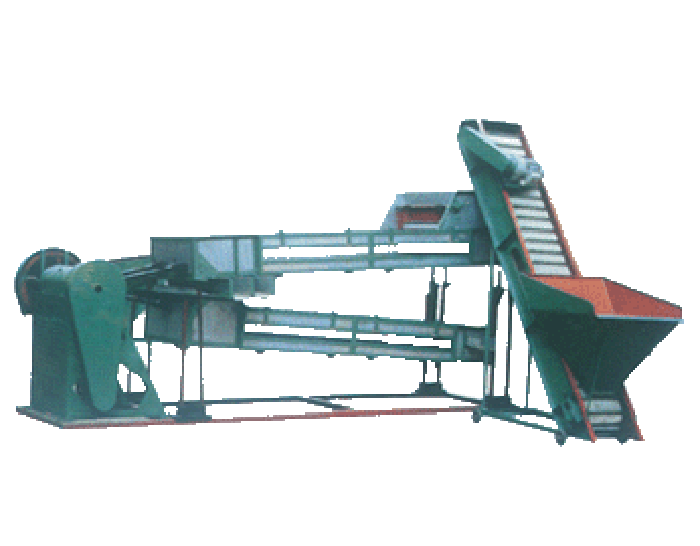

Quivering Screener
Model: CTN6CSD-767
Technical Data:
|
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
|
CTN6CSD-767 |
3700〜1190〜1160 |
100-200 |
1.0kw |

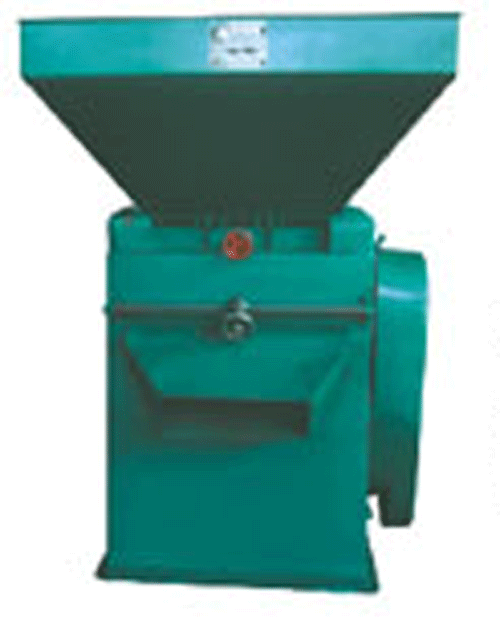

Cutting Machine
Model: CTN6CQC-661
Technical Data:
|
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
|
CTN6CQC-661 |
1050〜840〜1500 |
300-350 |
0.75 |

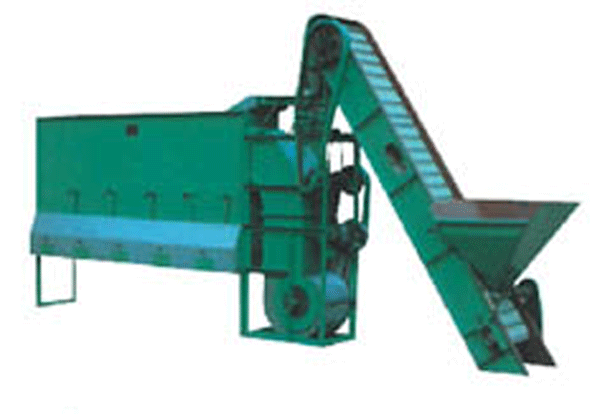

Sorting Machine
Model: CTN6CEF-40
Technical Data:
|
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
|
CTN6CEF-40 |
5530〜800〜2828 |
−250 |
1.5 |
Stalk Picker
Model: CTN6CJJ-82
Technical Data:
|
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
|
CTN6CEF-40 |
5530〜800〜2828 |
−250 |
1.5 |

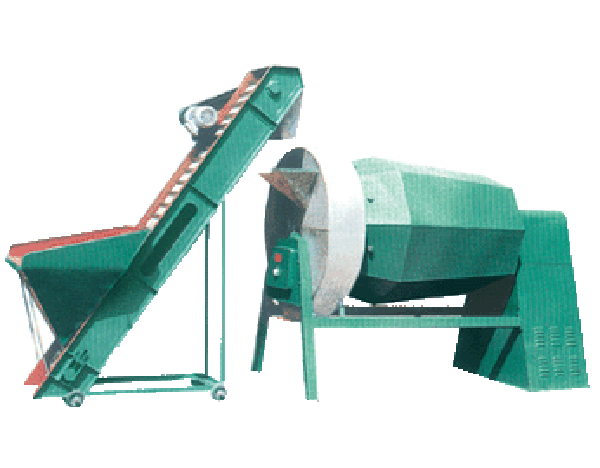

Coloring Machine
Model: CTN6CZS-120
Technical Data:
|
Model |
Outsize
(LxWxH) (mm) |
Output
(kg/h) |
Motor
(kw) |
|
CTN6CZS-120 |
2700〜1240〜1830 |
40-60 |
1.5 |
