Flat Tea Production Line

　



Flat Tea

Flattened Green Tea  Processing Procedure

Generally Speaking, flattened green tea processing needs the following steps:

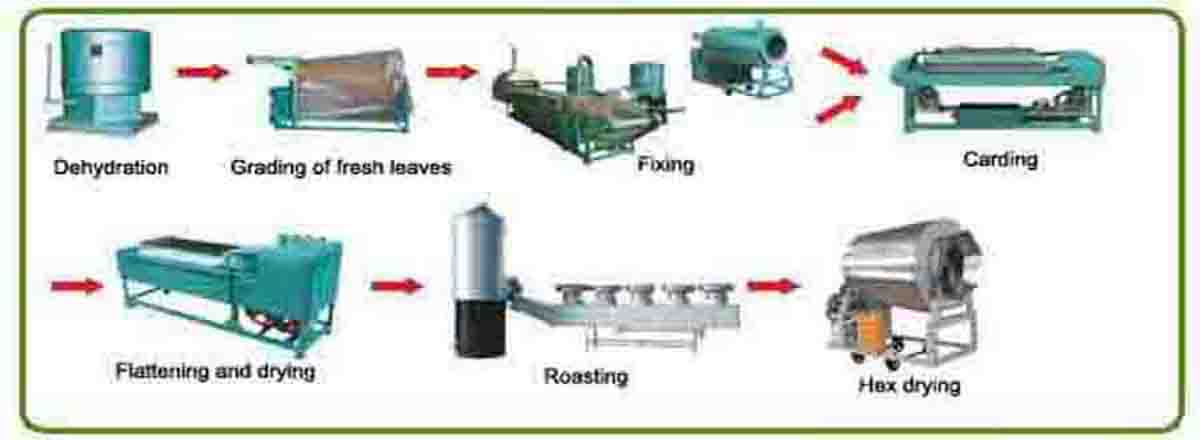

Dehydration-Grading of fresh leaves-Fixing—Carding—Flattening and drying—Roasting—Hex drying.

　

Machinery Show

Dehydrating Machine

CTN6CXT-60

Model

Outsize
(mm)

Output
(kg/h)

Motor
 (kw)

CTN6CXT-60

700×700

200-250

0.55

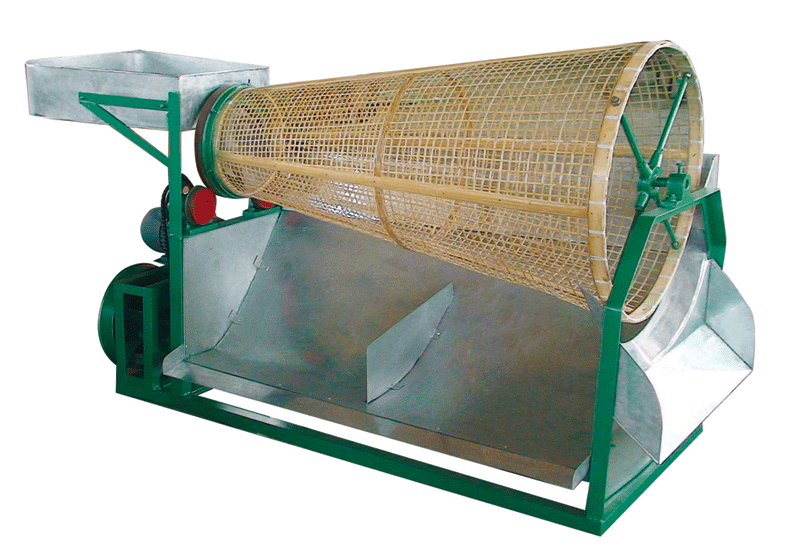

Grading Machine

CTNGD001

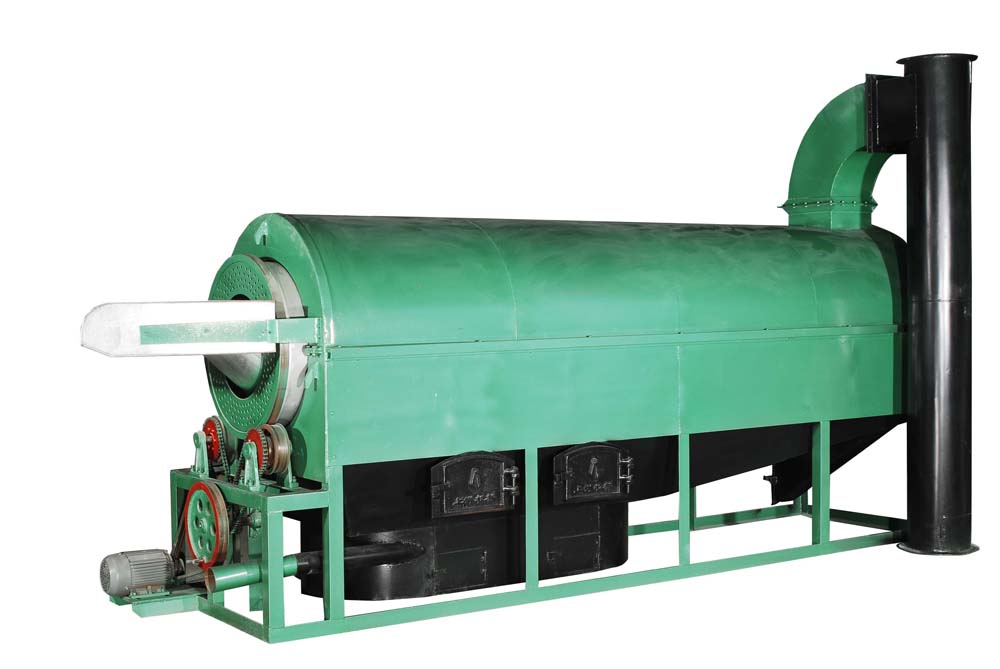

Fixing Machine

Model: CTN6CST-60 (Tumbling Box)

Technical Data:

Model

Outsize
(LxWxH)(mm)

Output
(kg/h)

Motor
 (kw)

CTN6CST-40

2205×700×1400

85±3

0.59

CTN6CST-50

3000×790×1500

85

0.75

CTN6CST-60

4180×980×2190

150—180

1.3

CTN6CST-70

5070×1100×2620

200—250

3.15

CTN6CST-80

4600×1100×3500

250-300

3.5

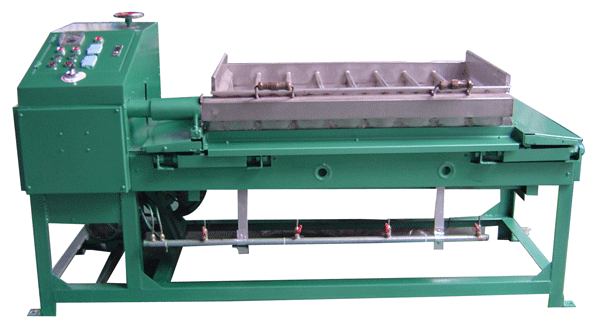

Carding Machine

CTN6CMD-60 (8 slots/gas)

Model

Outsize
(LxWxH)(mm)

Output
(kg/h)

Motor
(kw)

CTN6CLZ-60/8（ele）

1650×750×750

8

9.4

CTN6CLZ-60/8 (gas)

1650×750×750

20

1.4

CTN6CLZ-60/11 (ele)

1650×750×750

20

9.4

CTN6CLZ-60/11 （firewood）

1650×750×750

20

1.4

Muti-Use Machine

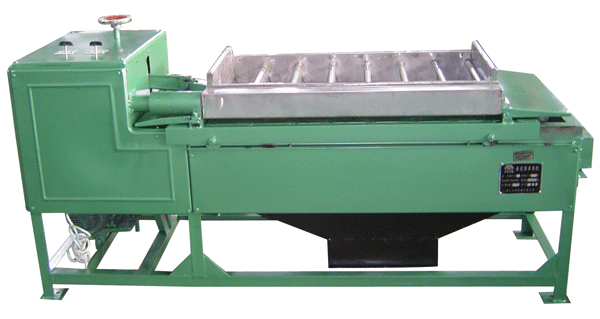

CTN6CMD-40 (7 slots) (Muti-Use Machine)

Technical data: Muti-Use Machine

Model

Outsize
(LxWxH)(mm)

Output
    (kg/h)

Motor
   (kw)

CTN6CMD-60/8(gas)

1960×880×1030

12

1.47

CTN6CMD-60/8 (ele)

1960×880×1030

1.5-2.5

14.47

CTN6CMD-60/8(firewood)

1960×880×1030

1.5-2.5

0.55

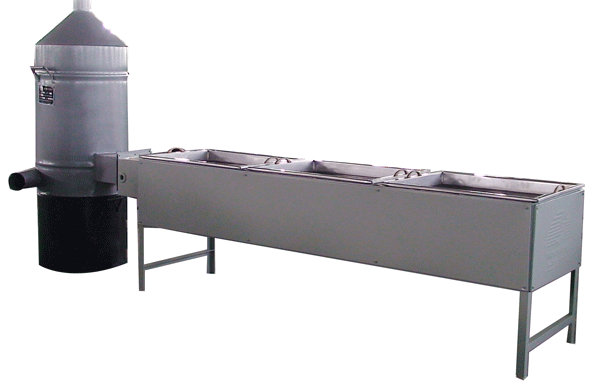

Roasting Machine

CTN6CHP-60

Model

Outsize
(LxWxH)(mm)

Output
(kg/h)

Plate
(pc)

CTN6CH-941

2650×480×876

12-15

5

CTN6CH-941II

1970×480×876

8-10

3

CTN6CH-60

1990×600×600

10-12

3

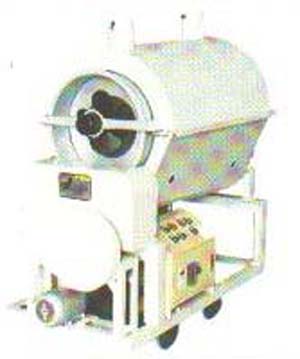

Hex Mutiuse Roasting Machine

CTN6CLH-60

Model

Outsize
(LxWxH)(mm)

Output
(kg/h)

Motor
   (kw)

CTN6CLH-60

1325 x 805 x 1397

≥15kg/h

Gas: 0.37kw
Ele: 3.37kw

　
