Generally Speaking, flattened green tea
processing needs the following
steps:
Dehydration-Grading of fresh
leaves-Fixing—Rolling —First
drying— Second roasting
— Ultra micro Muller
Machinery Show
Separate Machine
/images/A.jpg)
Technical Data:
|
Art No |
Main power |
Output per hour |
outsize (L×W×H) (mm) |
|
6TCJW-40 |
0.37kw |
400-500kg/h |
550×400×800 |
|
6TCJW-50 |
0.55kw |
800-1000kg/h |
880×650×1280 |
|
6TCJS-50 |
0.55kw |
800-1000kg/h |
2200×900×1280 |
|
|
|
Grading Machine
/images/B.jpg)
Technical Data:
|
Art No
|
Main power
|
Output per hour
|
outsize (L×W×H)
(mm) |
|
6TCSY-40 |
0.75kw |
800-1000kg/h |
1260×1090×930 |
|
6TCSY-766 |
1.12kw |
1000-1300kg/h |
2440×3420×2510 |
Fixing Machine
/images/G.jpg)
Technical Data:
|
Art No |
Main power
|
Output per hour
|
outsize (L×W×H)
(mm) |
|
6TCST-30 |
11.81kw |
20-35kg/h |
1855×485×1180 |
|
6TCST-40 |
19.09kw |
55-80kg/h |
2205×700×1400 |
|
6TCSZ-40 |
0.59kw |
40-50kg/h |
2205×700×1400 |
|
6TCST-60 |
1.3kw |
150-180kg/h |
4180×980×2190 |
|
6TCST-70 |
3.15kw |
200-250kg/h |
5070×1100×2620 |
|
6TCST-80 |
3.5kw |
250-300kg/h |
4600×1100×3500 |
|
6TCZS-50 |
5.48kw |
30-60kg/h |
5700×560×1350 |
|
6TCZS-150
|
10.07kw |
80-150kg/h
|
6920×810×1600 |
|
6TCZS-300 |
12.37kw |
150-300kg/h |
|
Drying Machine
/images/CC.jpg)
Technical Data
|
Model |
Outsize
(LxWxH)(mm) |
Output
(kg/h) |
Main power
(kw) |
|
6TCHB-3.0 |
3100×840×1400 |
10-20 |
1.6 |
|
6TCHB-6.0 |
4853×1524×1650 |
≥25 |
0.75 |
|
6TCHB-10 |
5760×1530×1650 |
40-60 |
0.75 |
|
6TCHB-16 |
6380×1530×2000 |
≥30 |
1.1 |
|
6TCHB-20 |
6710×1780×2100 |
≥35 |
1.1 |
|
6TCH-30 |
6400×2120×2400 |
160-180 |
10.1 |
|
CTN6CHB-3.0 |
3100X840X1400 |
≥12 |
0.8kw |
Rolling Machine
/images/Q.jpg)
Technical Data
|
Model |
Main power |
Output
(kg/h) |
Outsize
(LxWxH)(mm) |
Roasting machine
/images/M.jpg)
Technical Data
|
CTN6CH941 |
Roasting Plate (Pc):5 |
≥12kg/h |
2820x500x960
900x650 x600
630x530x530
900×900×810
900×900×1500
2200×700×400 |
|
CTN6CH941(II) |
Roasting Plate (Pc):3 |
≥8kg/h |
1880x500 x960
600x700 x1550 |
|
CTN6CHP60 |
Roasting Plate (Pc):3 |
≥10kg/h |
2320 x550 x760
600x700 x1550 |
Crushing machinery
Main use:
This machine is mainly suitable
for industries such as medicine,
food, chemical, metallurgy, and
construction. It processes hard
and difficult to crush
materials, including plastics,
steel wires, etc. It can also be
used as a supporting equipment
for the pre processing of micro
crushing. It is not limited by
material viscosity, hardness,
softness, and fibers, and can
achieve good crushing effects on
any material.

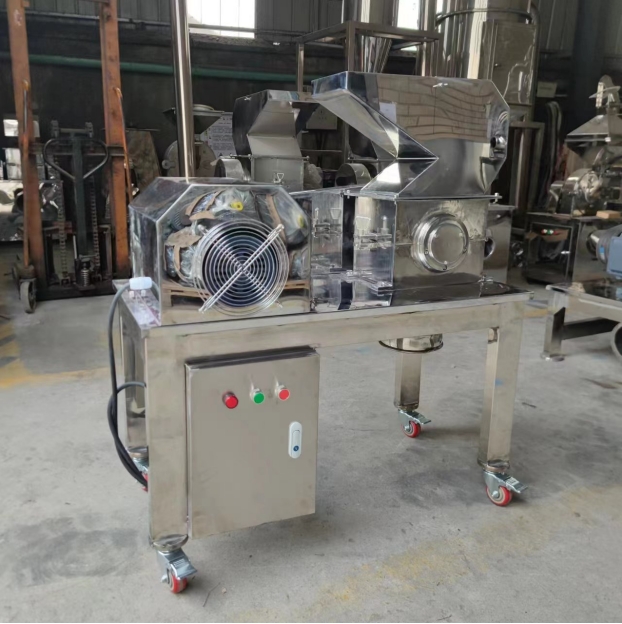

Working principle:
This machine has a horizontal
crushing structure. The material
enters the crushing chamber
through the feeding hopper, and
is crushed by the impact and
shear of the rotating and fixed
knives. The material
automatically flows towards the
outlet under the action of the
rotating centrifugal force. The
whole machine is made of
stainless steel material, with a
simple structure, convenient
cleaning, low noise, and is
currently an ideal equipment for
rough crushing.
|
Art No |
YYCF-200 Crushing
machinery |
|
Feed size (mm) |
≤ 50 |
|
Crushing capacity
(kg/h) |
20-100 |
|
Discharge size (mm) |
0.5-20 |
|
Fixed knife (piece) |
2 |
|
Knife (piece) |
3 |
|
Motor power (kW) |
3 |
|
External dimensions
(mm) |
1050 * 530 * 1200 |

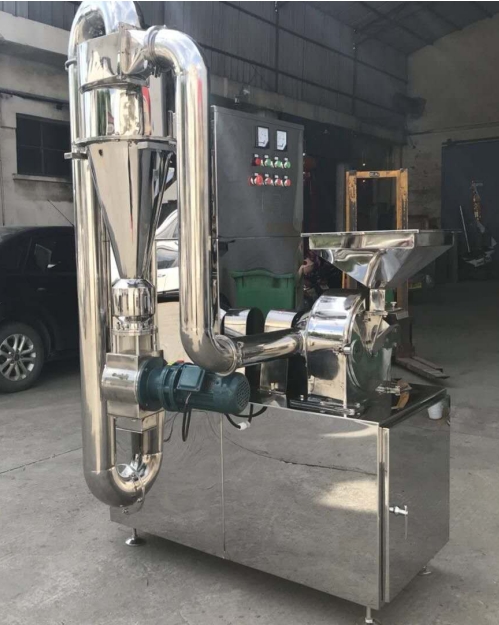

Crushing machinery
Main use:
This machine has the
characteristics of stable
technical performance, high
output, beautiful appearance,
and wide applicability. This
machine has an ideal effect on
crushing and drying fiber
materials. Compared with other
domestic models, the product has
low humidity and uniform
particle size, making it
particularly suitable for
crushing thermosensitive
materials such as sugar, plastic
powder, and traditional Chinese
medicine.
Features:
This unit consists of a main
engine, auxiliary equipment,
collection pipeline, and a
quantitative feeding device for
the electronic control device.
The auxiliary machine consists
of a cyclone and a dust
collector. The main machine is
equipped with a centrifugal
classification device, which can
not only complete crushing, but
also has a classification
function. The sorting type
centrifugal shear has no screen
or mesh, and the powder
particles can be adjusted
arbitrarily. After the material
is crushed, it is transported
through a negative compression
discharge valve outlet. This
unit is an ideal machinery for
the pharmaceutical, food, and
chemical industries.
|
Art No |
YYWF-350 Crushing
machinery |
|
Crushing motor |
7.5kw |
|
Fan |
2.2kw |
|
Discharge motor |
0.75kw |
|
Feed particle size |
＜10mm |
|
Finished product
fineness |
60-150 mesh
(crushing fineness
is related to the
material) |
|
Production/hour |
15-100kg |
|
External dimensions
(length * width *
height) mm |
1700×850×2000 |
|
Weight |
550kg |

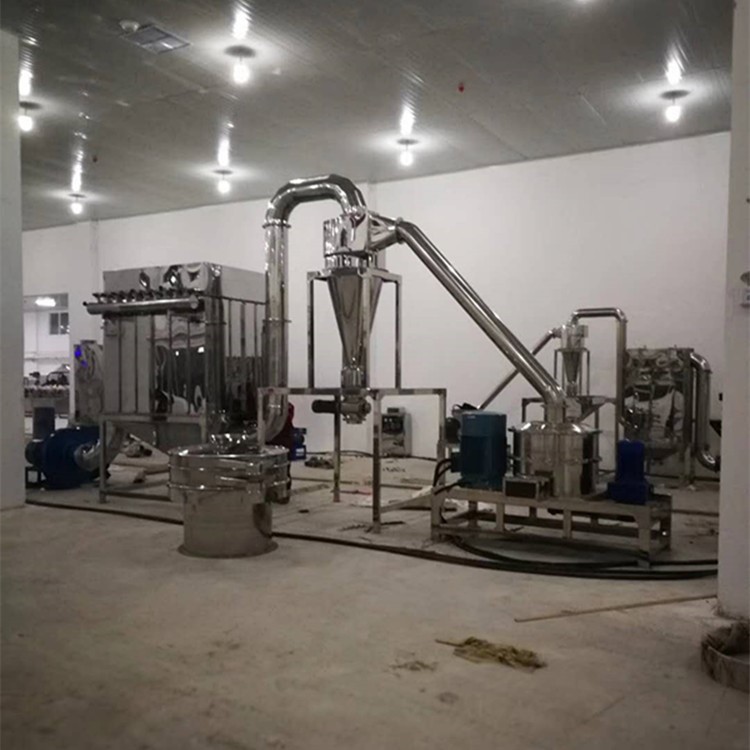

Ultra micro Muller
Technical Data
|
Art No
|
Ultra micro Muller
515 |
|
Crushing quantity:
|
15-100 kg/h |
|
Total power:
|
11.25 KW |
|
Voltage:
|
380 v |
|
Speed:
|
5000 r/min |
|
Crushing small
degree:
|
0.18mm -0.06mm
|
|
Feeding particle
size:
|
less than 5 mm |
|
Weight:
|
550 Kg |
|
Machine size (mm):
|
1700x650x2000 |
1.
Main use:
This machine is composed of
three parts: the main engine,
auxiliary engine, and electric
control box. It has various
properties such as air
selection, no screen, no mesh,
and uniform particle size. The
production process is
continuous. This machine has
reached the international
advanced level and is widely
used for material crushing in
industries such as
pharmaceuticals, chemicals, and
food.
2. Working principle:
The material enters the crushing
chamber through a spiral
conveyor from the hopper, and is
cut by high-speed blades to
obtain crushing. The material is
transported into a cyclone
separator through negative
pressure air transportation, and
the bag filter and discharged
material meet the requirements
of the product.
