Single Filling Machine Equipment

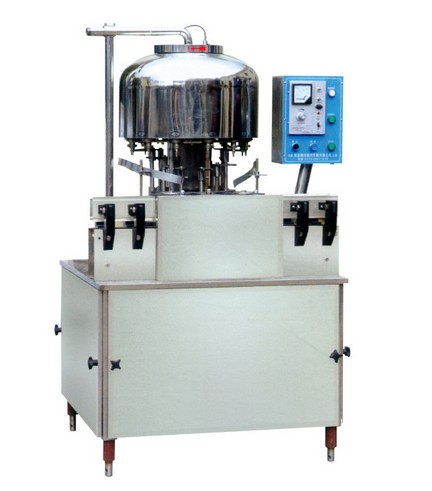

YCYG Series Normal Pressure Filling Machinery



The machine is mainly used for non-carbonated beverage filling mineral water, purified water, juice, etc., replacement parts can be high temperature filling device of choice for small and medium beverage manufacturers.

The main technical parameters

Model
Production capacity
Applicable bottle height
Motor Power
YCYG-12
2000-3000B/h
160-300(mm)
1.12kw
YCYG-16
3000-5000B/h
160-320(mm)
1.12kw
YCYG-24
4000-8000B/h
160-340(mm)
1.87kw

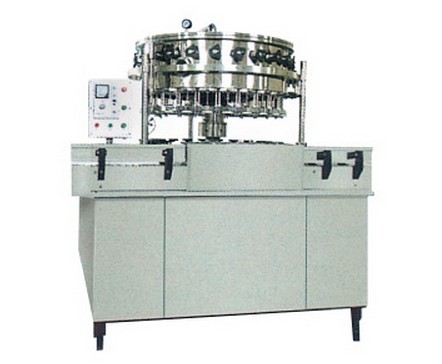

YDNY Series Balanced Pressure Filler

The machine is based on the introduction, digestion and absorption of foreign advanced technology, innovation developed from a filling equipment with advanced level, it is mainly used for Soft drink, cola, sparkling wine, fruit, water and other beverages containing gas filling installed. It has advanced structure, smooth, safe operation, convenient maintenance, variable speed, high production efficiency. Is ideal for small and medium carbonated beverage plant beverage filling machine.

The main technical parameters

Model
YDNY-8
YDNY-12
YDNY-18
YDNY-24
YDNY-32
Production capacity
1000-2000B/H
1000-3000B/H
2500-4600B/H
2500-6000B/H
3000-8000B/H
Bottle type
Glass bottles, PET bottles, cans
Filling pressure
0.2-0.3Mpa
Filling temperature
2-6℃
Power
0.75kw
1.1kw
1.5kw
1.5kw
2.2kw
Dimensions
1000×900
×1800mm
1100×1050
×1800mm
1400×1300
×1800mm
1600×1540
×1800mm
1900×1500
×2000mm
Weight
1000kg
1600kg
2100kg
2700kg
3500kg

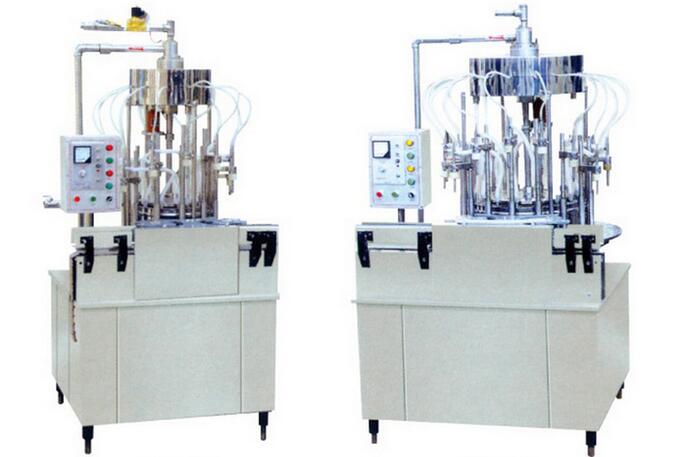

YGYFP Series Balanced Pressure Filler

YGYFP series vacuum filling machine can accurately fill white wine, the color of wine, fruit juice and other non-carbonated drinks dew, but also liquid vinegar, milk and pesticide for filling, with no broken bottle, no-drip, easy operation and maintenance, etc. characteristics, also features overload protection and LCD devices. Because it is in the closed filling, so you can eliminate the proliferation of pollution and harmful substances, in line with requirements of the Food Sanitation Law.

The main technical parameters

Model
YGYFP-12
YGYFP-24
YGYFP-32
Production capacity(Bottle/Hours)
1500-2500
3000-6000
5000-8000
Bottle type
lass bottles, PET bottles
Bottle diameter(mm)φ15-φ18
Outside diameter of the bottle(mm)φ50-φ80
Bottle height(mm)200-320
Cans
Outside diameter(mm)53-65
Height(mm)90-133
Power(kw)
0.75
1.1
1.5
Dimensions(mm)
1000×800×2000
1330×1260×2200
1450×1700×2500
Weight(kg)
500
800
1000

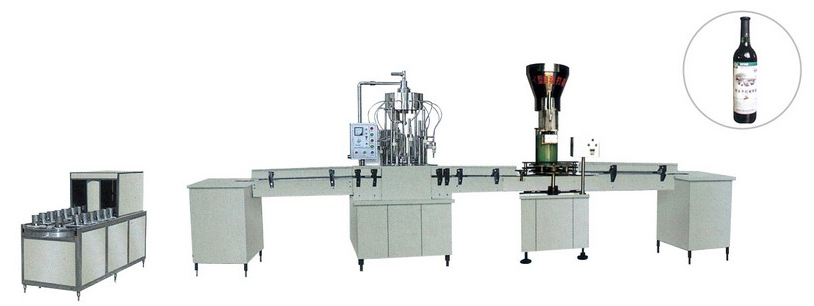

YGYFP Series Production Line Of Wine Washing Filling And Sealing



The production line has a chain-course red bottle, bottle combo machine control, YGYFP series vacuum filling machine, YDYZ-C automatic corking machine, YSYSJ conveyor and other products composed. The key parts of the machine washing, filling, sealing, etc. are made of high quality stainless steel material, with advanced technology, systems, reliable performance, easy to use features.

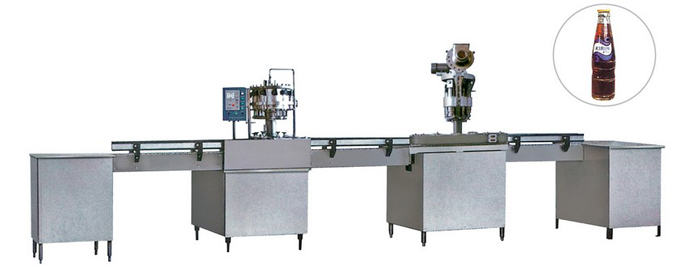

The production line of washer,filler and capper of 2000 bottles/hour

The production line is mainly used for carbonated beverage, such as Soft drink, cola, iced tea, Sprite, aerated mineral water and other beverages filling and sealing.

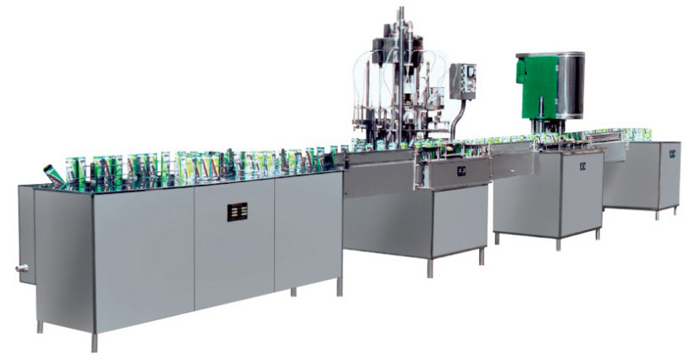

The line for style pop-top cans made of tinplate

This production line is mainly used three cans made ​​of tinplate, 5133 tank washing, filling and sealing.

The main technical parameters



Production capacity(b/h)
2000
Power(kw)
0.75kw 1390r/min
Dimensions(mm)
930×700×1850
Weight(kg)
500
Applicable specifications cans
ф50-67 H90-200

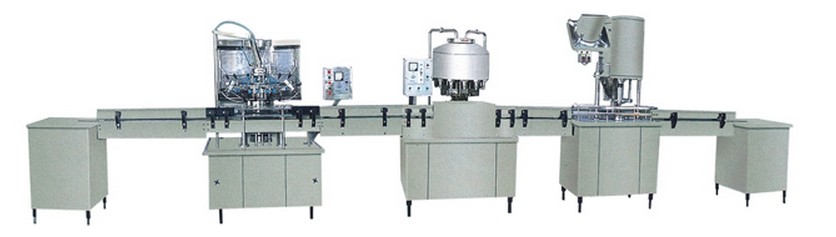

Washing,Filling And Sealing Production Line For Pure Water,Mineral Water,Fruit Juice,Spirit,Etc

The production lines are YQYS-type auto washer, YCYG type Pressure Filling Machine, YFYXZ automatic capping machine, YSYSJ conveyor and other products composed. The key parts of the machine washing, filling, sealing, etc. are made of high quality stainless steel material, with advanced technology, systems, reliable performance, easy to use features.

The main technical parameters

Model
Production capacity
Applicable bottle height
Motor Power
YQYS-12、YCYG-12、YFYXZ-1
2000-3000B/h
160-300(mm)
2.25kw
YQYS-18、YCYG-16、YFYXZ-6
3000-5000B/h
160-320(mm)
2.95kw
YQYS-24、YCYG-24、YFYXZ-8
3000-8000B/h
160-340(mm)
3.7kw

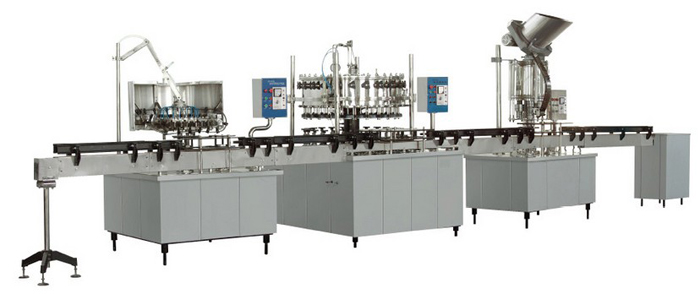

Gas,Colo Etc.GasContaining Drink Auto Washing,Filling

And Sealing Production Line



YFYXZ cap turning machine, SSJ conveyor and other products composed. The key parts are made ​​of stainless steel. With a reasonable structure, advanced technology, easy operation, wide range of features. Small and medium sized manufacturers the ideal beverage production line unit.

The main technical parameters

Model Production capacity Applicable bottle height Motor Power
YQYS-12 YDY-12 YFYXZ-B 1000-2000b/h 160-300(mm) 3.13kw
YQYS-18 YDY-18 YFYXZ-6 1500-4000b/h 160-320(mm) 4.45kw
YQYS-18 YDY-24 YFYXZ-6 2000-5000b/h 160-340(mm) 4.45kw
YQYS-24 YDY-32 YFYXZ-8 3000-8000b/h 160-340(mm) 5.95kw



Pure water filling production line
Tea drinks production line
Tea juice hot filling production line
Sparkline beverage filling production line
Water treatment equipment
Barreled drinking water production
Single Filling Machine Equipment
Sparling Beverage filling auxiliary machinery
Juice hot Filling auxiliary machinery

Tea production line and technology
Tea Juice Production Line 2000B/H 500ml PET bottle
Tea Drink Line 3000-4000B/H 500ml PET Bottle
Tea Production Line 4000B/H(500ml PET Bottle)
Tea Production Line 6000-7000B/H (500ml PET Bottle)
Tea Production Line 8000-9000B/H (500ml PET Bottle)
Tea Production Line 10000-12000B/H (500ml PET Bottle)
