Tea juice hot filling production line

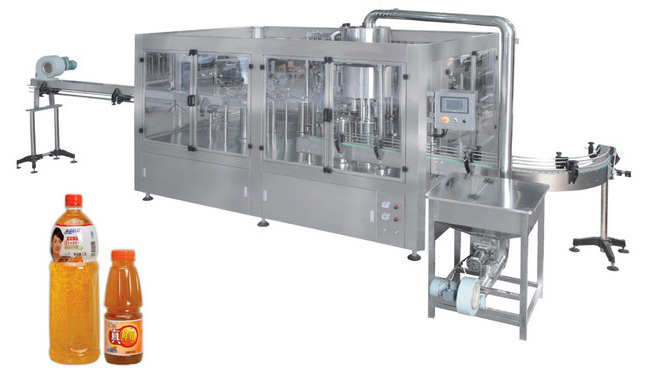

Washing, pulp Filling, juice Filling, capping 4-in-1 Monobloc

Pulp hot filling equipment adopts card Bottleneck Drive technology, automatic disinfection, washing bottle, pulp filling, capping and other processes, high degree of automation; flesh filling the cavity with a single plunger type constant volume filling technology; equipped with sound the temperature control system and return system with complete automatic cleaning system and control procedures, all parts in contact with the liquid using a high-quality stainless steel and food grade rubber.

The main technical parameters

Model	YRYCGFB 16-12-16-6	YRYCGFB 18-12-18-6	YRYCGFB 24-18-24-8	YRYCGFB 32-24-32-10	YRYCGFB 40-32-40-12	YRYCGFB 50-40-50-15
Red bottle Heads	16	18	24	32	40	50
Flesh filling quantity	12	12	18	24	32	40
Juice Filling quantity	16	18	24	32	40	50
Capping quantity	6	6	8	10	12	15
Rated output	4000BPH	6000BPH	8000BPH	12000BPH	15000BPH	20000BPH
Capacity	3.8KW	4.3KW	4.3KW	8.7KW	9.5KW	12KW
Dimensions	3050*2000 *2400mm	3170*2070 *2400mm	3170*2070 *2400mm	5100*2600 *2400mm	6250*3050 *2400mm	7500*3900 *2400mm

---

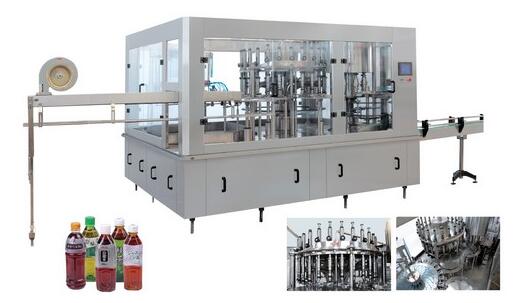

Washing, filling, capping 3-in-1 Monobloc

Hot filling equipment used card Bottleneck Drive technology, automatic red bottled, filling, capping and other processes, high degree of automation; equipped with a sound system and a reflux temperature control system, automatic cleaning system with a sound and food grade rubber .

The main technical parameters

Model	YRYCGF 16-12-6	YRYCGF 18-18-6	YRYCGF 24-24-8	YRYCGF 32-32-10	YRYCGF A40-40-12
Production capacity(b/h)	3000	6000	10000	14000
Filling accuracy	≦±5mm(Level positioning)Liquid Level
Filling return flow	≦10
PET bottles Specifications(mm)	Bottle Diameter:φ50-φ92;Bottle High(Height):150-310
Applicable cap	Plastic screw cap
Rinsing water pressure	0.18
Red bottle of water(kg/h)	800	1600	2500	3500	3500
Air pressure（Mpa）	0.6
Consumption(m3/min)		0.3	0.4	0.5	0.5
Total power(kw)	5.88	6.68	7.68	9.18	9.18
Total weight(kg)	2500	3000	4000	5000	5000
Dimensions(mm)	2100*1500*2200	2450*1800*2200	2750*2180*2200	3600*2800*3150	3600*2800*3150
