Sparling Beverage filling
auxiliary machinery

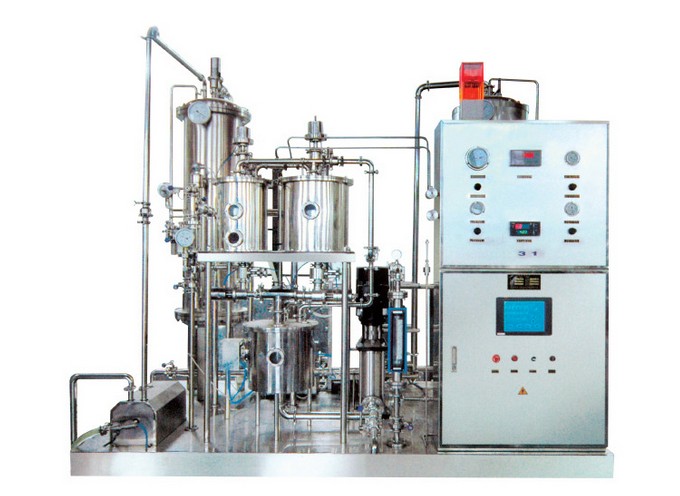

YQYHS Series Drink Mixera
The machine introduced in Japan
developed from the latest
technology in a leading position
in the domestic similar
products. The main mixer mix
carbonated beverage for a
variety of processing, can also
be used for slush beverage,
mixed beverage processing and
other fermented beverages
paragraph.
YQYHS series drink mixer is to
increase the proportion of
water, syrup and carbon dioxide
in a precise and well-designed,
using advanced foreign
technology - a static mixer to
lighten water layer, increase
carbonizing time, ensuring
beverage mixing; reflux deoxy
carbon dioxide, saving carbon
dioxide, but also to achieve the
purpose of deoxidation; quality
pumps and Siemens appliances and
other components complete
automatic control system with
motor coordination, beautiful
appearance, convenient washing,
high degree of automation,
applicable to many types of
mixed drinks. Such as Soft
drink, juice drinks, cola and
other soft and hard drinks.
The main technical parameters
|
Model |
YQYHS-1500 |
YQYHS-3000 |
YQYHS-4000 |
YQYHS-6000 |
|
Production capacity |
1500kg/h |
2500kg/h |
4000kg/h |
6000kg/h |
|
Carbon dioxide levels |
>2.6 |
|
Chilled water inlet
temperature |
0-4℃ |
|
Motor Power |
1.1kw |
2.42kw |
3.5kw |
5.1kw |
|
Dimensions |
1030×1180×1930mm |
1550×1050×2000mm |
1650×1300×2000mm |
1900×1300×2250mm |
|
Weight |
600kg |
800kg |
1300kg |
2500kg |

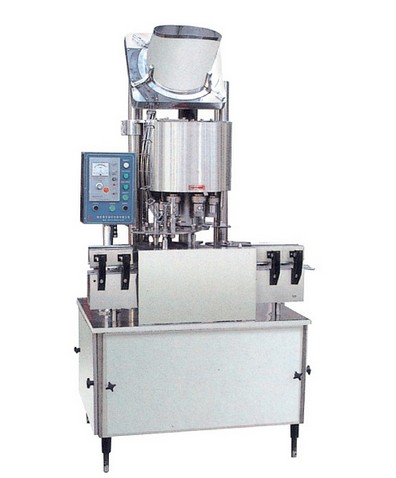

YFYXZ Series Screw Type Seamer
The machine is suitable for
glass bottles, plastic bottles,
three (four) screwed cap sealing
process, improve their
performance, reliable, easy to
operate, easy to maintain. In a
variety of wine, food, beverage,
pharmaceutical, chemical
reagents, water, pesticides
until automatic packaging line
are widely used, is one of the
most ideal screw type automatic
sealing equipment.
The main technical parameters
|
Model
|
YFYXZ-1
|
YFYXZ-6
|
YFYXZ-8
|
|
Production capacity
|
2000B/h
|
6000B/h
|
8000B/h
|
|
Bottle diameter
|
φ50-φ100
|
φ50-φ100
|
φ50-φ100
|
|
Bottle height
|
150-320mm
|
150-320mm
|
150-320mm
|
|
Power
|
0.75kw
|
0.75kw
|
1.1kw
|
|
Dimensions
|
900×700×1900mm
|
1050×850×2350mm
|
1500×1200×2500mm
|
|
Weight
|
350kg
|
500kg
|
600kg
|

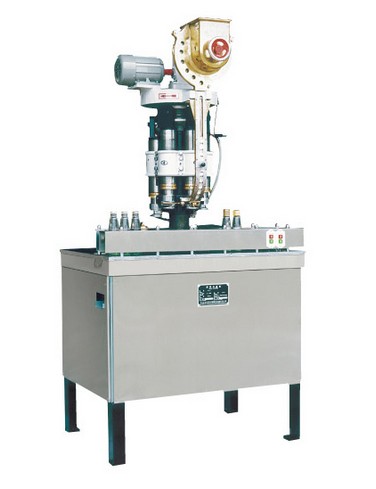

YGY Series Automatic Capper
YGY-6A automatic capping machine
is to adapt to user units
produced glass bottles Soft
drink, sparkling wine, fruit
juice drinks, health drinks and
sauce, vinegar, wine industry,
such as production process,
automatic gland sealing
equipment.
The main technical parameters
|
Model |
YG-6 |
YG-6A |
|
Production capacity |
2300 Bottles/h |
6000 Bottles/h |
|
Pressure hijab number |
6 |
6 |
|
Bottle Capacity |
250,375,500,625ml |
250,375,500,625ml |
|
Caps form |
crown type |
crown type |
|
Power |
1.5kw |
2.2kw |
|
Dimensions |
1000*700*1850mm |
1100*900*1850mm |
|
Weight |
700kg |
1100kg |
|
