Sparkline beverage filling production line

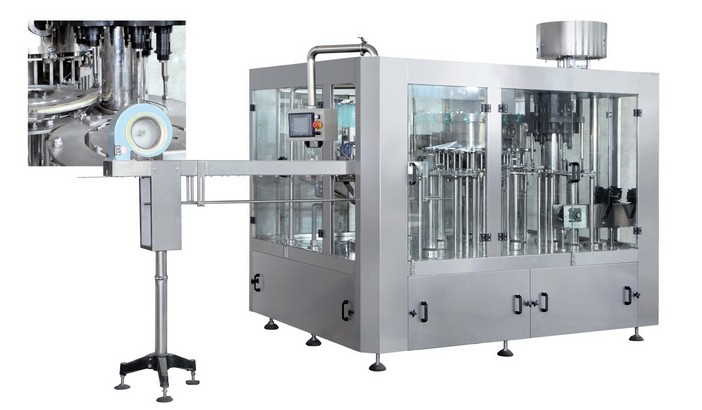

Washing,pulp Filling,carbonated Filling,capping 4-in-1 Monobloc

Pulp containing gasoline filling equipment using cards Bottleneck Drive technology, automatic bottle washing, filling pulp, soda bottling, capping and other processes, high degree of automation; flesh filling the cavity with a single plunger type constant volume filling technology; CO2 pressure control with precise level control and stability; has several cards bottle, lack of bottle, lack of cover, overload protection alarm devices to ensure the quality produced. The device has a high reliability, high efficiency, easy operation.

The main technical parameters

Model	YDYCGFB 16/12/12/6	YDYCGFB 18/12/18/6	YDYCGFB 24/18/24/8	YDYCGFB 32/24/32/10	YDYCGFB 40/32/40/12	YDYCGFB 50/40/50/15
Red bottle Heads	16	18	24	32	40	50
Flesh Filling quantity	12	12	18	24	32	40
Soft drink Filling quantity	12	18	24	32	40	50
Capping quantity	6	6	8	10	12	15
Rated output(500ml)	3000BPH	5000BPH	8000BPH	1200BPH	15000BPH	1800BPH
Capacity	3.8KW	4.3KW	6.5KW	8.7KW	9.5KW	12KW
Dimensions(mm)	3050*2000*2400	3170*2070*2400	4070*2350*2400	5100*2600*2400	6250*3050*2400	7500*3900*2400

---

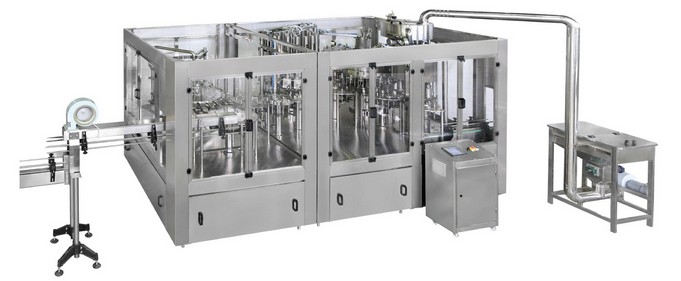

Washing,filling,capping 3-in-1 Monobloc

Carbonated filling equipment using cards Bottleneck Drive technology, automatic bottle washing, filling, capping and other processes, high degree of automation; equipped with CO2 precise pressure control, level control and stability; has several cards bottles, lack of cover and overload protection alarm devices to ensure produced high reliability, high efficiency, easy operation with.

The main technical parameters

Model	YRYCGF 16-12-6	YRYCGF 18-18-6	YRYCGF 24-24-8	YRYCGF 32-32-10	YRYCGFA 40-40-12
Production capacity	2000-4000	4000-6000	6000-8000	8000-12000	8000-12000
Filling pressure	<±5mm(Level positioning)(Liquid level)
Filling accuracy	<0.4
PET bottles Specifications(mm)	Bottle Diameter(Bottle Diameter):φ50-φ100;Bottle High(Height):150-320
Applicable cap	Plastic screw cap
Rinsing water pressure	0.18-0.25
Red bottle of water(kg/h)	1300	2000	2500	3000	3000
Spraying position	5	5	6	12	12
Lek bottles station	2.5	3.0	3.5	7	7
Air pressure（Mpa）	0.4
Consumption(m3/min)	0.3	0.4	0.4	0.5	0.5
Total power(kw)	5.03	5.03	6.57	8.07	8.07
Total weight(kg)	2000	3000	4000	5000	5000
Dimensions(mm)	2100*1500*2200	2450*1800*2200	2750*2180*2200	3600*2200*2600	3600*2200*2600
